| IDENTITY | |
| Min Face Height [Frame-Sash] | 146 mm |
| Min Face Height [Threshold-Sash] | 109 mm |

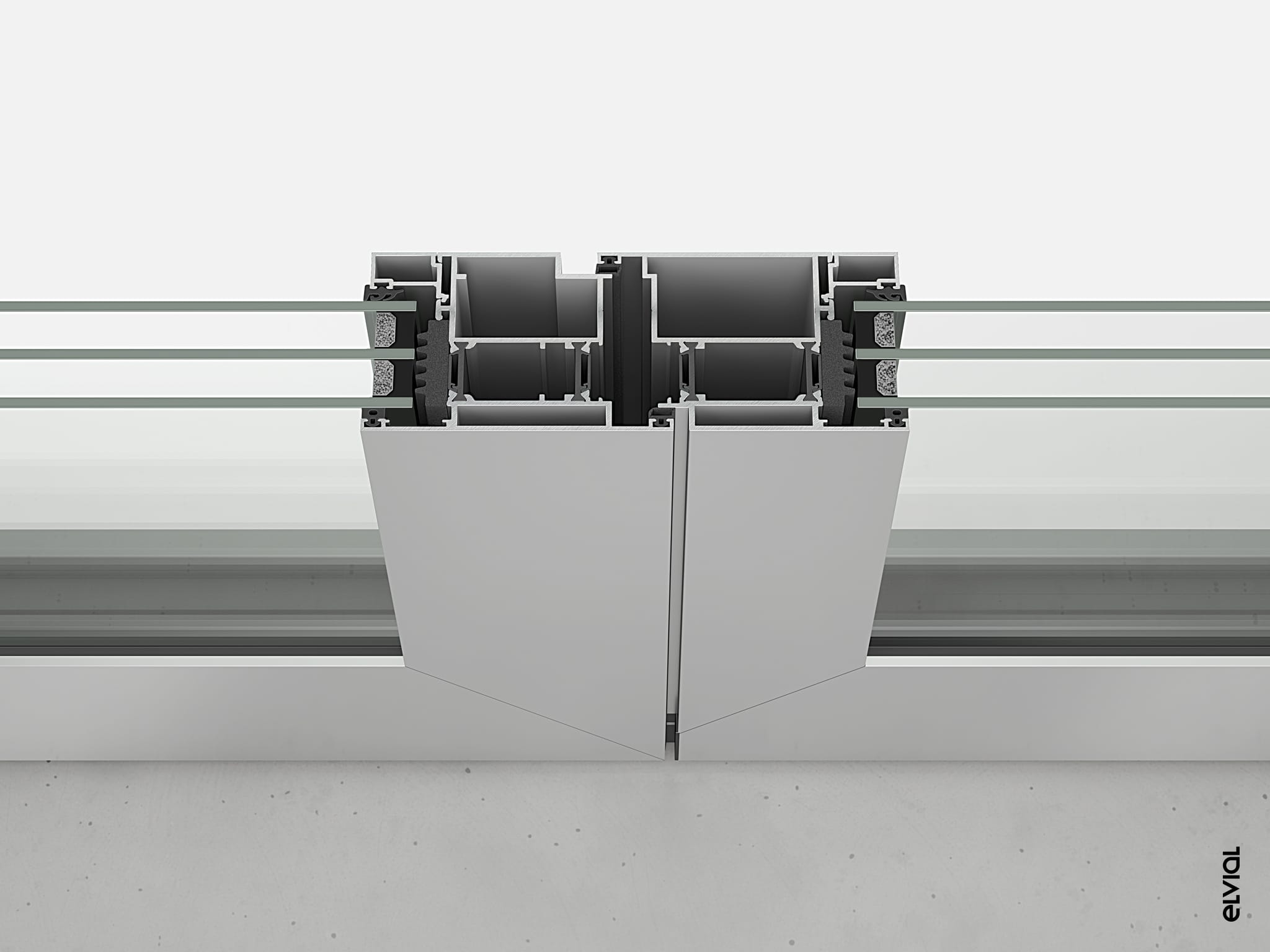

| Min Face Width [Middle Mullion] | 177 mm |
| PROPERTIES | |
| Max Sash Height | 3000 mm |
| Max Sash Width | 1400 mm |
| Max Sash Weight | 180 kg |
| Max Glass thickness | 52 mm |
| PERFORMANCE | |
| Uf Value(≥) EN ISO 10077-2 | 1.9 W/mK |
| Air Permeability EN 12207 | Class 4 |
| Watertightness EN 12208 | Class 8A |
| Resistance to Wind Load EN 12210 | Class C4/B4 |
| Brochures & More | |
|---|---|
| Product Leaflet | |
| Manuals | |
|---|---|
| Order Manual | |
| Fabrication Manual | |
| Hardware Manual | |
| Certificates Catalog | |
|---|---|
| Certificates Catalog |
|
| EPD | |
| DOORS INWARD OPENING WITH THRESHOLD AND GLASS | |
|---|---|
| REVIT File | |
| Instructions | |
| DOORS INWARD OPENING WITH WINDSHIELD AND GLASS | |
|---|---|
| REVIT File | |
| Instructions | |
| DOORS INWARD OPENING WITH BOTTOM PROFILE AND GLASS | |
|---|---|
| REVIT File | |
| Instructions | |
| DOORS OUTWARD OPENING WITH THRESHOLD AND GLASS | |
|---|---|
| REVIT File | |
| Instructions | |
| DOORS OUTWARD OPENING WITH WINDSHIELD AND GLASS | |
|---|---|
| REVIT File | |
| Instructions | |
| DOORS OUTWARD OPENING WITH BOTTOM PROFILE AND GLASS | |
|---|---|
| REVIT File | |
| Instructions | |

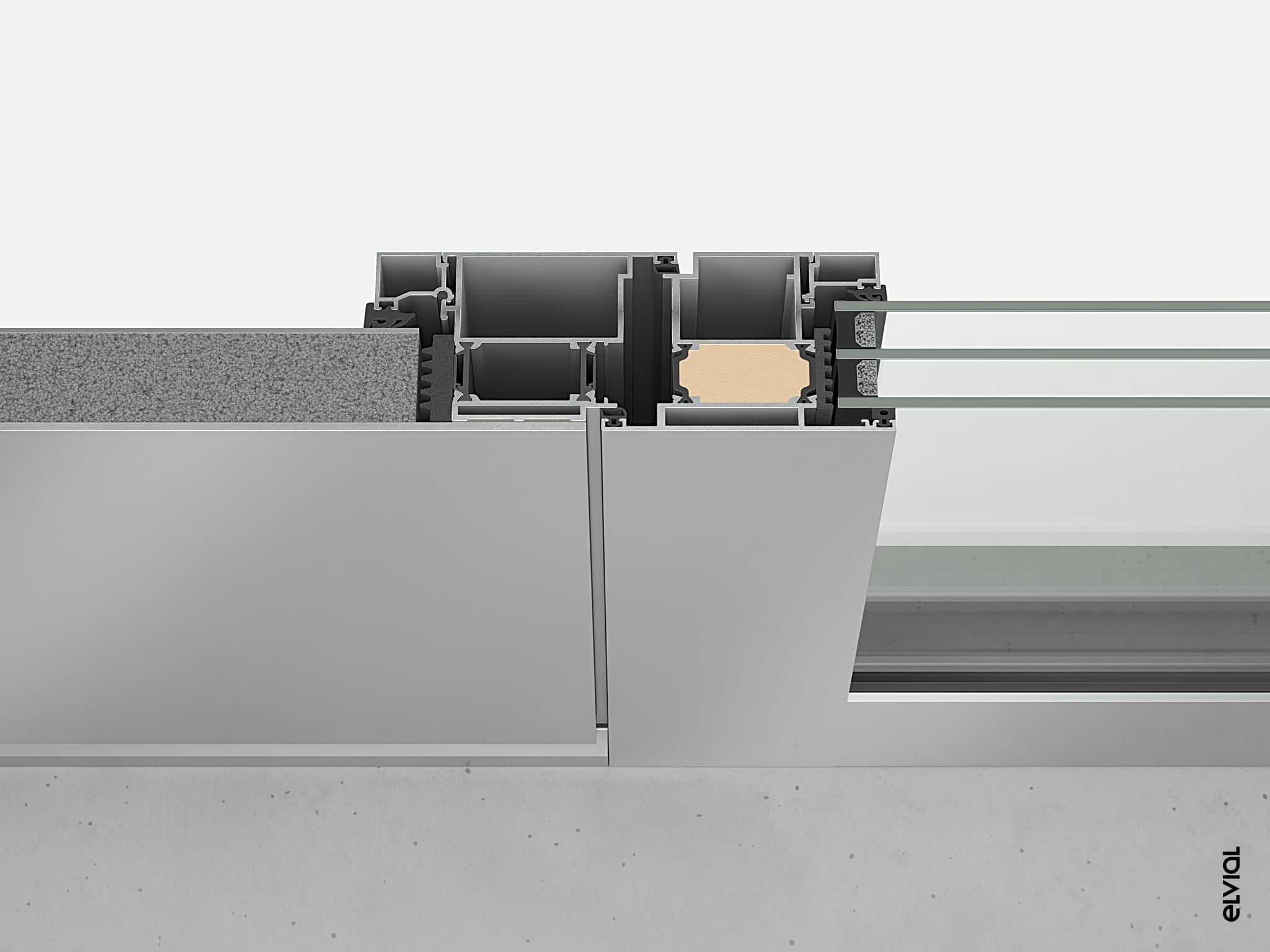

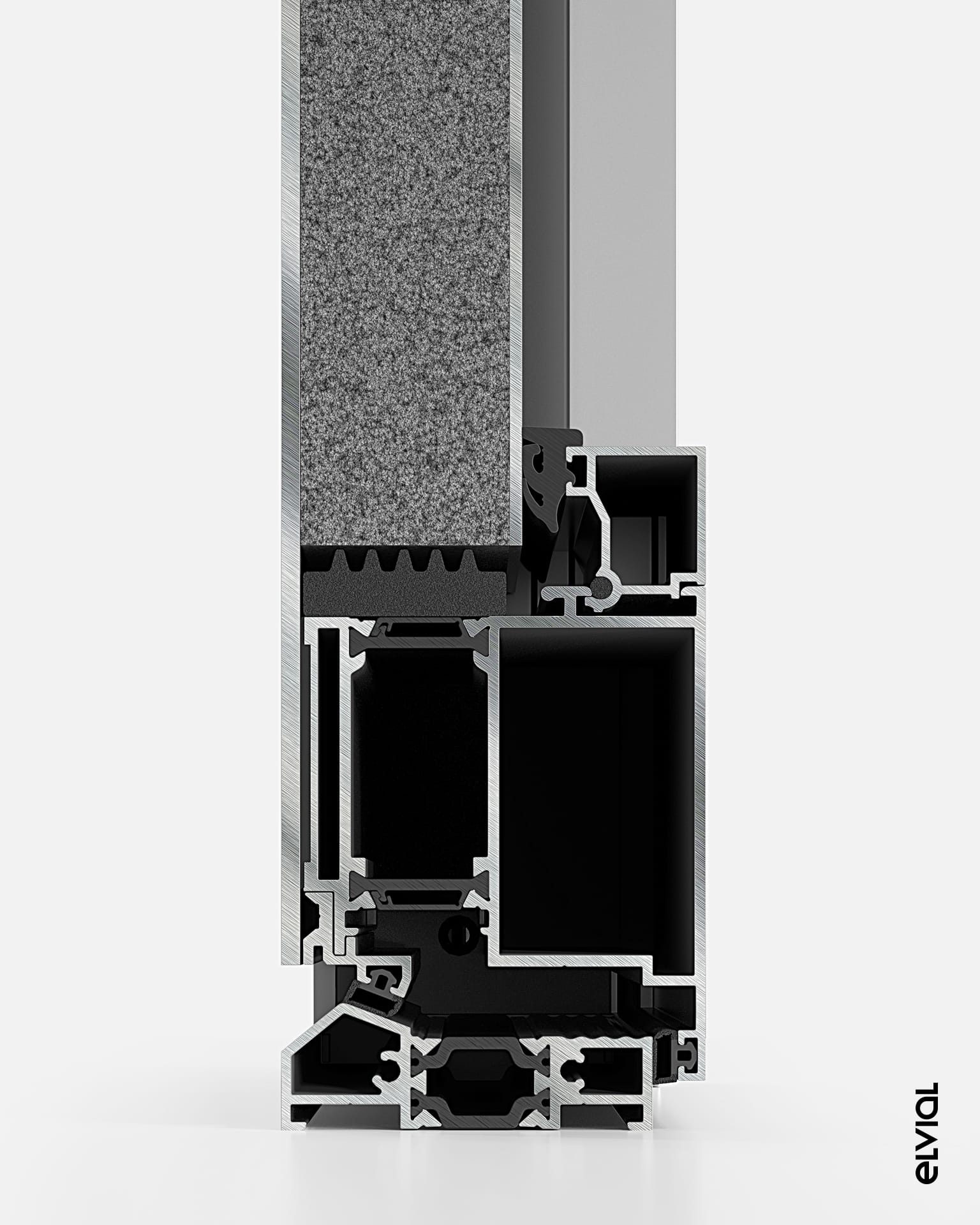

| DOORS INWARD OPENING WITH THRESHOLD AND PANEL | |
|---|---|
| REVIT File | |
| Instructions | |
| DOORS INWARD OPENING WITH WINDSHIELD AND PANEL | |
|---|---|
| REVIT File | |
| Instructions | |

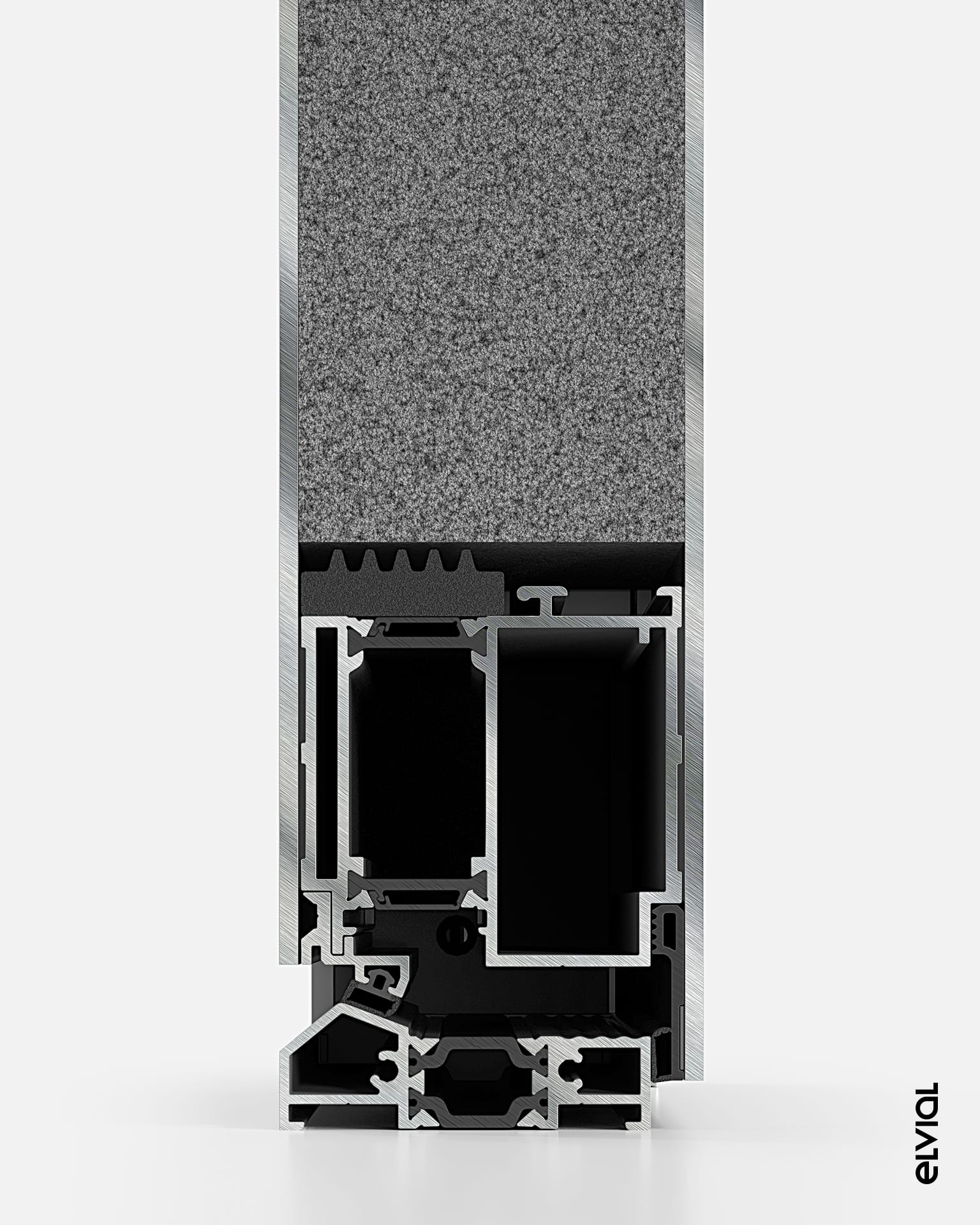

| DOORS INWARD OPENING WITH THRESHOLD AND FLUSH PANEL | |
|---|---|
